ASTM D4972 is a standardized test method used to determine the acidity or alkalinity of soil materials suspended in:

• reagent water; and
• a 0.01 M calcium chloride solution.

The standard requires both measurements to more fully characterize soil pH. The water suspension represents the pH under a low-ionic-strength aqueous condition, while calcium chloride helps control ionic-strength effects and releases part of the exchangeable acidity from the soil. The pH measured in calcium chloride is therefore generally slightly lower than the pH measured in water.

ASTM D4972 results may support:

• soil classification
• environmental studies
• agricultural evaluations
• mineral-mobility investigations
• research programs
• comparative characterization of soil samples

The water measurement represents soil acidity or alkalinity under the extraction conditions established by the method.

It is useful for:

• routine soil characterization
• comparison between samples
• environmental and agricultural studies
• assessment of the aqueous soil environment

The calcium chloride measurement provides a more controlled ionic environment.

Calcium ions displace some exchangeable acidity, including exchangeable aluminum, while the defined salt concentration reduces dilution effects on the soil exchange equilibrium. The result is commonly lower than the value obtained in water.

The two values should not be treated as interchangeable. ASTM D4972 requires that the report clearly identify which result was measured in water and which was measured in calcium chloride.

ASTM D4972 requires the test soil to be air dried and passed through a 2.00 mm No. 10 sieve.

Approximately 10 g of prepared soil is used for each suspension:

• 10 g soil with approximately 10 mL water; and
• a separate 10 g soil portion with approximately 10 mL of 0.01 M calcium chloride.

Each mixture is thoroughly mixed and allowed to stand for one hour before measurement. The measurement is conducted at approximately room temperature, between 15 and 25°C.

Particles larger than 2 mm are excluded because their inclusion can produce significantly different results. Any deviation in the tested particle-size fraction should be identified in the laboratory report.

ASTM D4972 specifies ASTM Type III reagent water or better.

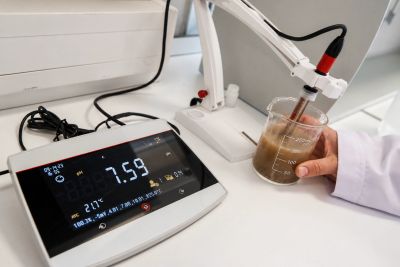

The pH meter is calibrated using appropriate buffer solutions of known pH before sample analysis. The method describes acidic and near-neutral reference buffers, and laboratories should also follow the applicable instrument-manufacturer instructions.

At LAB-ELITE, analytical controls may include:

• multipoint pH calibration
• calibration verification
• temperature monitoring
• electrode-condition checks
• replicate or quality-control measurements where required

ASTM D4972 explicitly states that it applies to soil-pH measurements other than for corrosion testing.

It also explains that methods designed for corrosion applications use different measurement conditions and should not automatically be substituted for general soil-pH characterization.

When the purpose of the project is to assess whether a soil environment may accelerate corrosion of buried metals, AASHTO T289 or another corrosion-specific method is generally more appropriate.

Although ASTM D4972 and AASHTO T289 both measure soil pH, they are intended for different project objectives and use different sample-preparation and measurement conditions.

They should not be treated as interchangeable methods.

ASTM D4972 is intended for soil-pH measurement in agricultural, environmental, natural-resource and general soil-characterization applications.

The procedure measures pH in two separate suspensions:

• soil and water; and
• soil and 0.01 M calcium chloride.

The method uses approximately 10 g of air-dried soil and an approximately equal volume of extracting liquid. The soil is passed through a 2 mm sieve and each suspension stands for one hour before measurement.

ASTM D4972 is generally appropriate for:

• environmental soil characterization
• agricultural studies
• natural-resource evaluations
• mineral-solubility studies
• ion-mobility investigations
• research applications
• comparative pH characterization

AASHTO T289 is specifically intended to determine soil pH for corrosion testing.

Its principal use is to supplement soil-resistivity measurements and help identify conditions under which corrosion of metals in soil may be sharply accentuated.

The procedure uses:

• a moist, prepared soil or soil-aggregate sample;
• material passing a 2 mm sieve;
• 30.0 g soil;
• 30.0 g distilled water; and
• a minimum one-hour stabilization period with stirring every 10 to 15 minutes.

The electrode is placed in the soil-slurry solution and not directly into the soil solids. The result is reported to the nearest 0.1 pH unit.

AASHTO T289 is generally appropriate for:

• soil-corrosivity investigations
• buried metallic infrastructure
• pipeline and utility projects
• transportation infrastructure
• corrosion-screening programs
• investigations performed with AASHTO T288 resistivity testing

Use ASTM D4972 when the objective is to characterize general soil acidity or alkalinity and evaluate factors such as mineral solubility, ion mobility or environmental and agricultural behaviour.

Use AASHTO T289 when the objective is to assess soil conditions that may contribute to corrosion of buried metallic infrastructure, particularly when pH is being evaluated together with minimum soil resistivity under AASHTO T288.

For projects involving both general soil characterization and corrosion assessment, it may be appropriate to conduct both methods because they answer different technical questions.

Before submitting samples, clients should identify:

• the material type and source
• the purpose of the pH measurement
• whether corrosion assessment is involved
• whether resistivity testing is also required
• the applicable project specification
• whether water, calcium chloride or corrosion-specific pH is required

LAB-ELITE can then help determine whether ASTM D4972, AASHTO T289 or another applicable pH method is best suited to the project.

ASTM D4972 provides a standardized laboratory procedure for measuring soil pH in water and calcium chloride. The method is commonly used in environmental investigations, agricultural evaluations, natural-resource studies and research projects where reliable characterization of soil acidity or alkalinity is required.

LAB-ELITE provides ASTM D4972 soil-pH testing services throughout Quebec and Canada, including sample preparation, potentiometric measurement and complementary soil-chemistry analyses.

The appropriate soil-pH method depends on the project objective.

ASTM D4972 is intended for general soil characterization, while AASHTO T289 is specifically intended for corrosion-related testing and commonly supplements minimum soil-resistivity measurements.

LAB-ELITE assists environmental consultants, geotechnical engineers, corrosion specialists and infrastructure owners in selecting the appropriate soil-pH method for their projects.
